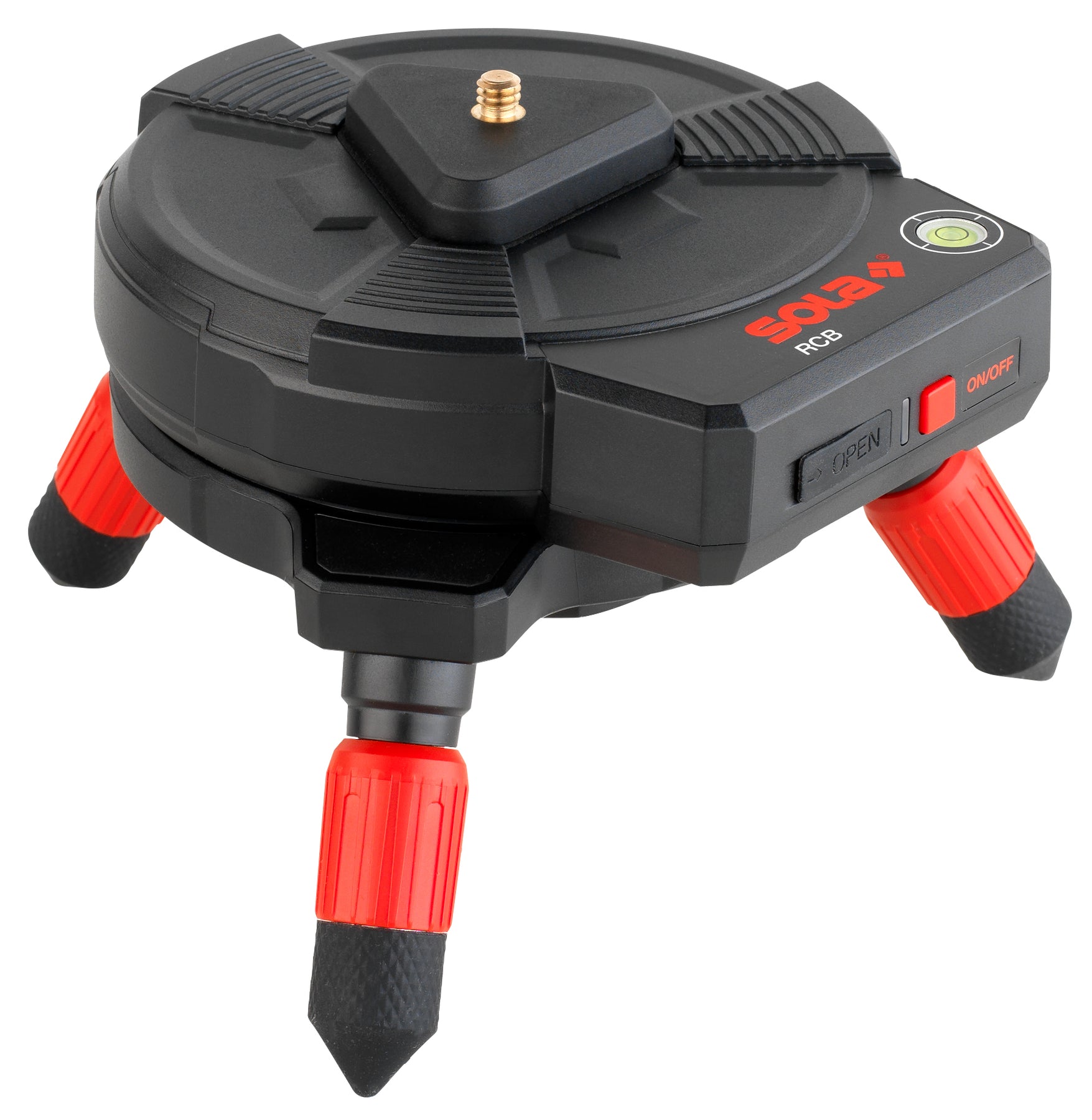

Remote Controlled Motorised Laser Level Base
The SOLA RCB Remote Controlled Laser Base makes positioning and fine-tuning laser levels faster, easier and more precise. Designed for use with compatible line lasers, the motorised base allows you to remotely rotate, raise and lower your laser level from up to 30 metres away.

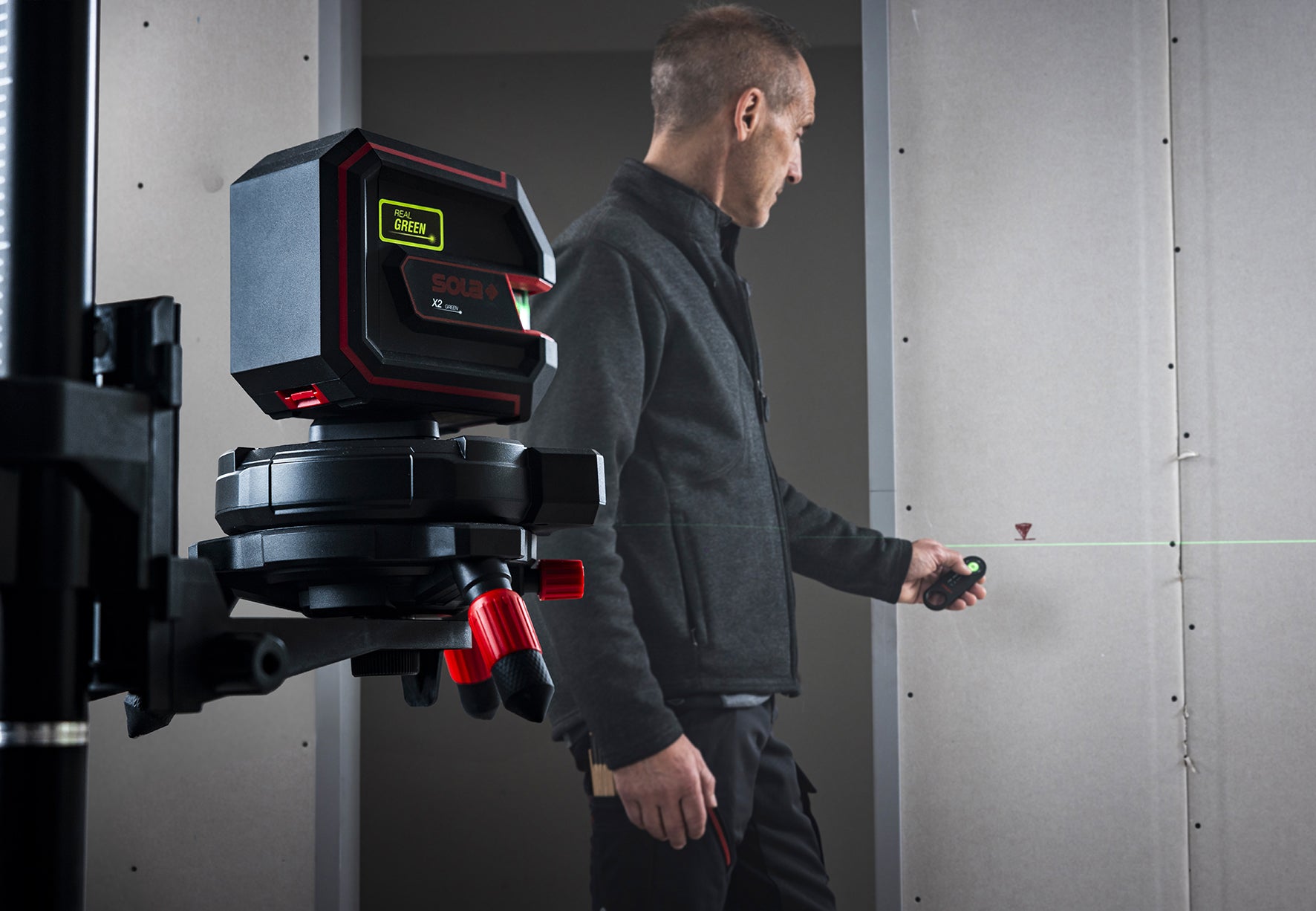

Ideal for precise horizontal and vertical laser alignment, the RCB eliminates the need to continually walk back to the laser to make adjustments — saving time when working alone on installations, fit-outs and construction projects.
Precise Vertical Alignment
The RCB rotates the mounted laser 360° clockwise or counterclockwise, allowing precise positioning of vertical laser lines. Control the rotation remotely using three speed settings for quick positioning or millimetre-precise fine adjustment.
The laser can also be rotated manually using the adjustment knob on the base when required.
Fine Horizontal Adjustment
The integrated levelling platform allows the mounted laser to be raised or lowered by up to 20mm, making it easy to fine-tune horizontal laser lines without touching or repositioning the laser.
Adjust the height continuously for precise positioning or move directly to the maximum adjustment height at the touch of a button.
Flexible Setup
Designed for professional use across a range of applications, the RCB can be used:

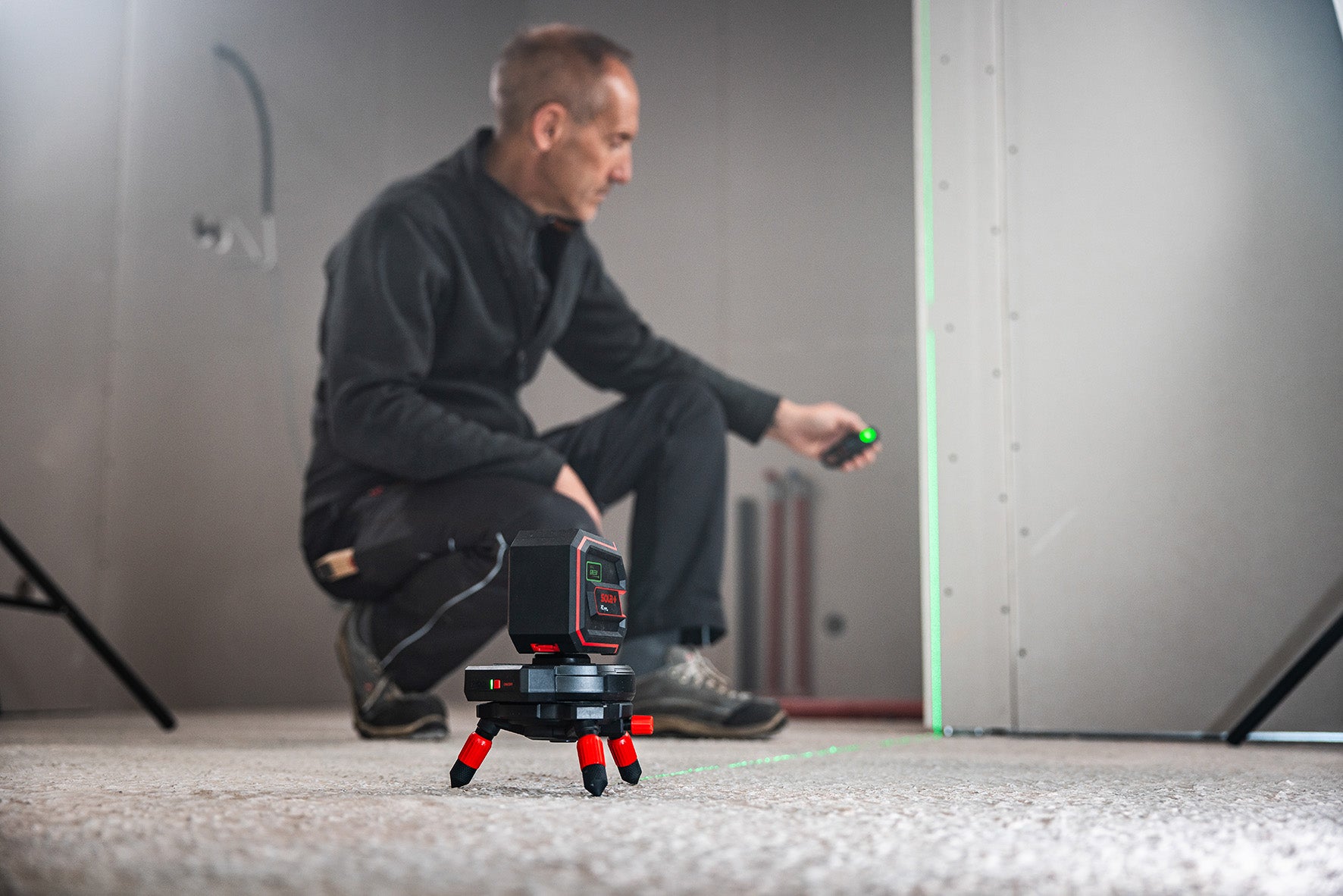

- Directly on the ground
- Mounted to a tripod
- Attached using the supplied magnetic wall mount
Three height-adjustable swivel feet and an integrated bubble vial allow the base to be accurately levelled when working from the ground.
The RCB is compatible with line lasers featuring 1/4" or 5/8" threads using the supplied thread adapter.
Rechargeable & Jobsite Ready
An integrated Li-Ion rechargeable battery provides hours of mobile use and can be conveniently recharged via USB-C.
Ideal for interior fit-outs, installation work and anywhere precise positioning of vertical and horizontal laser lines is required.

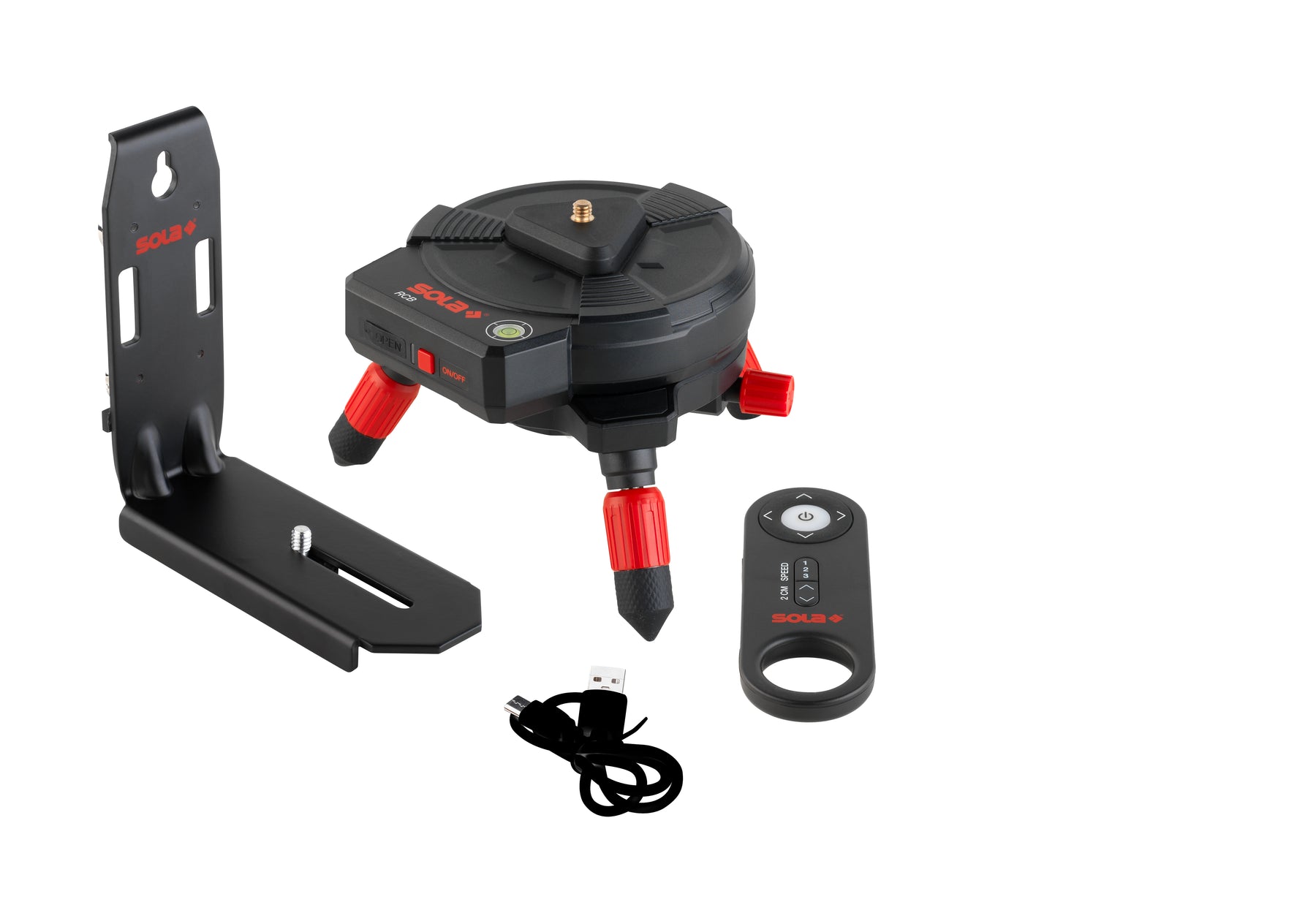

Includes: RCB laser alignment base, remote control, magnetic wall mount, USB-C charging cable and thread adapter.
Dimensions
170 x 170 x 115 mm
Protection Class
IP54
Operating Time
900 applications
Operating Temperature
0°C to +50°C
RCB Power Supply
Li-ion rechargeable battery (2200 mAh)
Remote Control Power Supply
Li-polymer rechargeable battery (200 mAh)
Field of application with remote control
30m
Tripod Thread
1/4"
Maximum load
1.2kg
Working range
20 mm vertical, 360° rotatable (3 velocities)
Material
ABS Plastic
