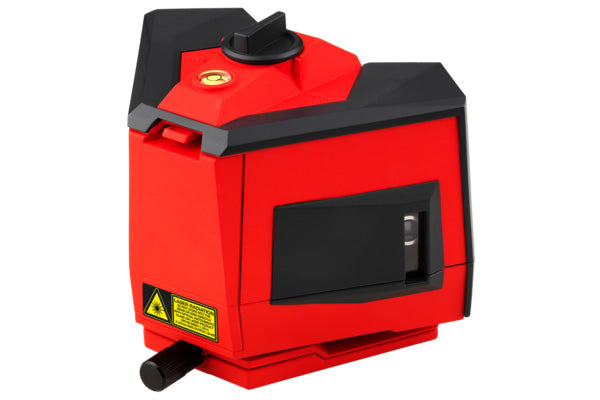

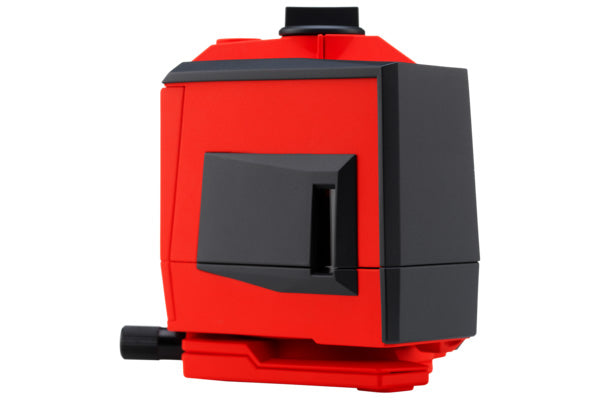

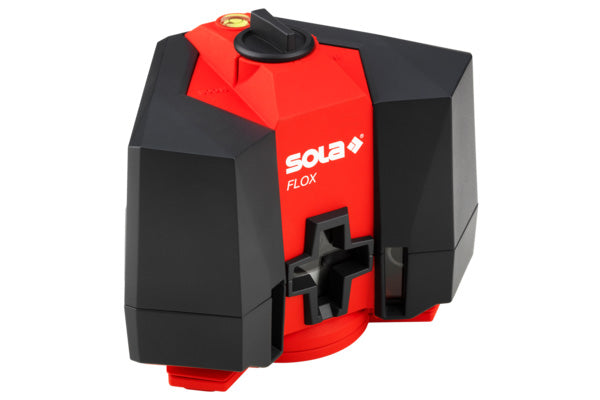

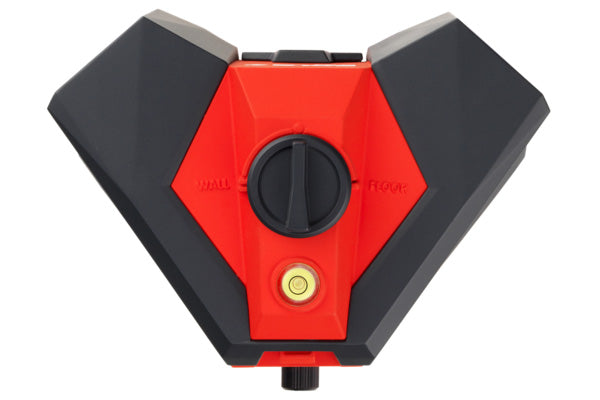

FLOX Floor Cross Laser

$670.00

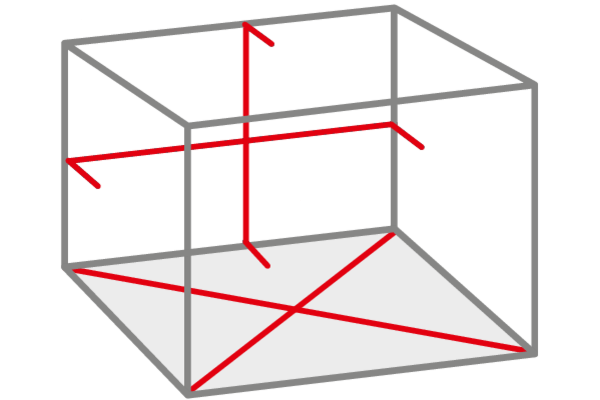

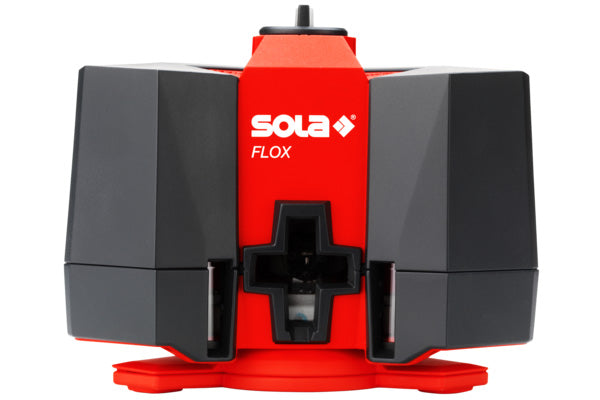

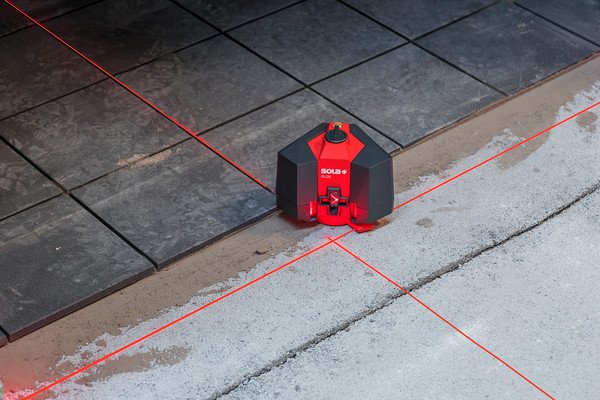

  • Laser cross in front and continuous 90° laser lines allow an uninterrupted working without re-positioning of the laser

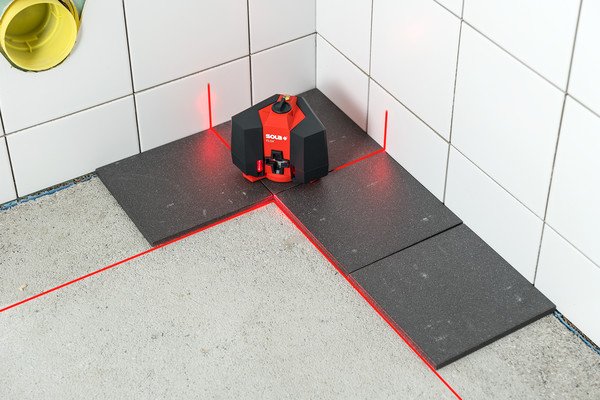

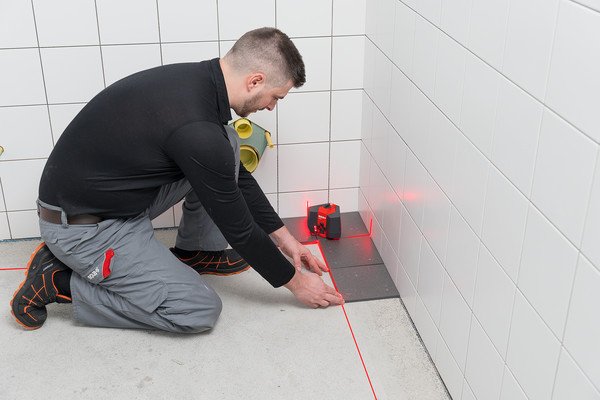

  • 5 mm ground clearance allows attaching the tiles under the device
  • Bright, very visible laser lines

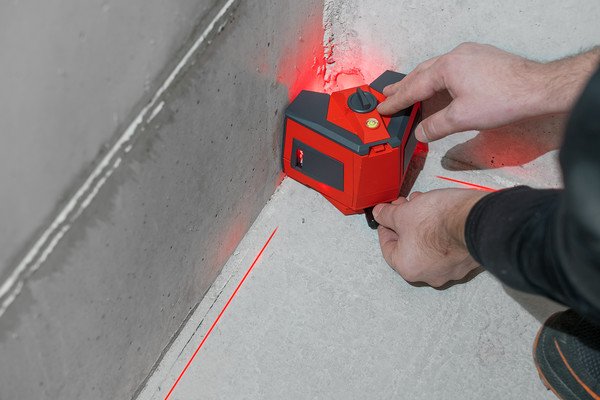

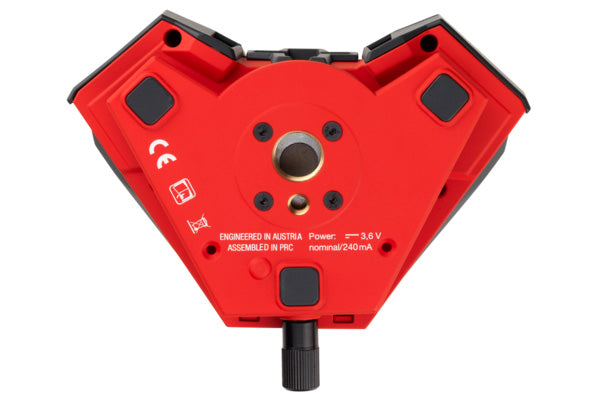

  • Rotatable base for easy and rapid alignment of the line position
  • Particularly easy and safe operation even for less experienced users

Applications

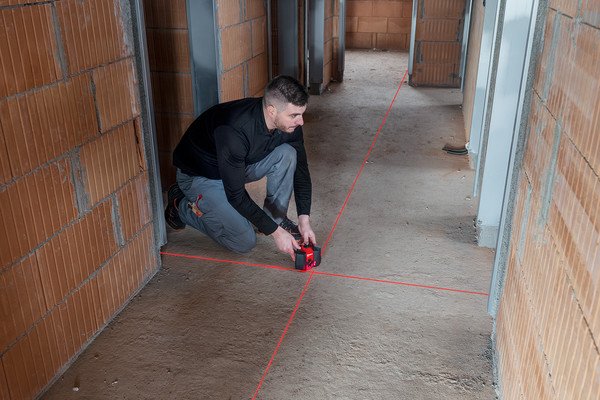

  • Horizontal levelling

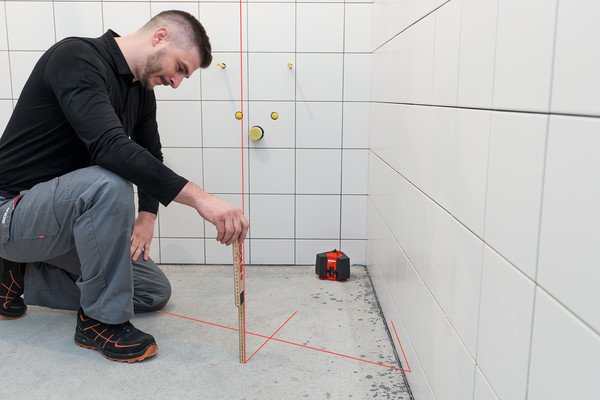

  • Vertical levelling
  • niv-boden

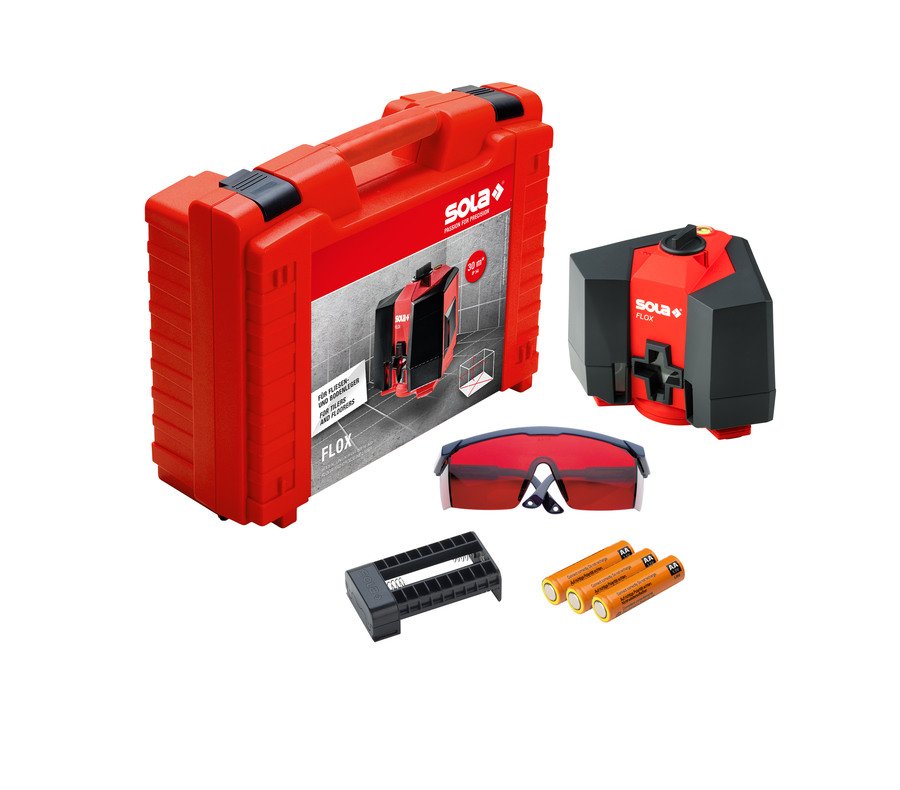

Includes:



Technical details
FLOX
Item description Line laser
Dimension 150 x 119 x 122 mm
Levelling Permanent floor line, self-levelling wall cross
Measuring tolerance +/- 0.30 mm/m (floor) / +/- 0.50 mm/m (wall)
Self-levelling range ±3°
Application range without handheld receiver (radius) 30m* (floor) / 10m* (wall)
Operating temperature -10 °C to +50 °C
Tripod adapter 1/4″ + 5/8″

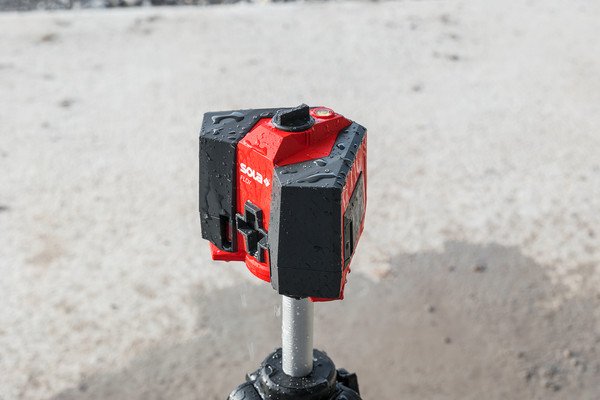

Protection class IP54

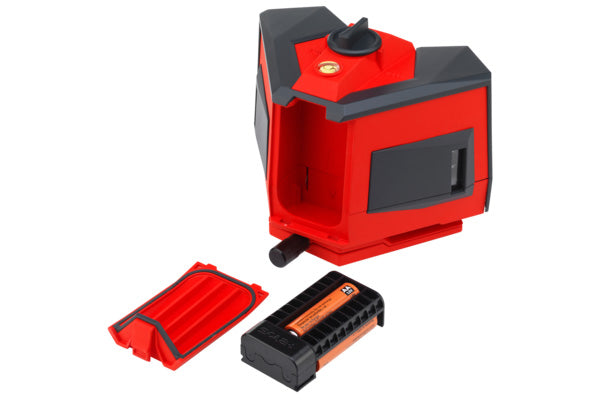

Power supply 3 x 1.5 V (AA) batteries
SOLA Li-Ion battery (5200 mAh)
Operating time (at 20 °C) 9 h (floor)/ 40h (wall) 3x 1.5V (AA) batteries

24 h (floor)/65 h (wall) SOLA Li-ion Battery

Laser class 2, DIN EN 60825-1 : 2014
Output power < 1.0 mW
Wavelength 635 nm

Video

FLOX LASER VIDEO
