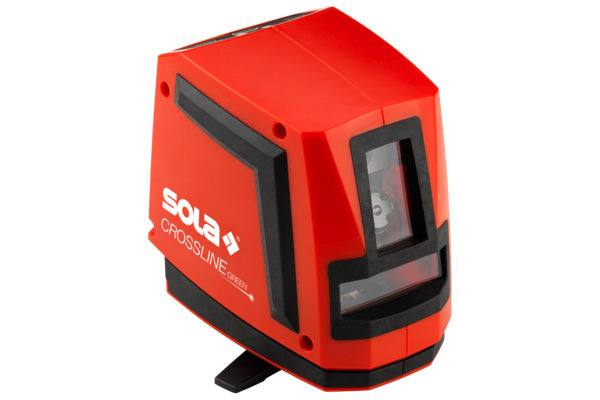

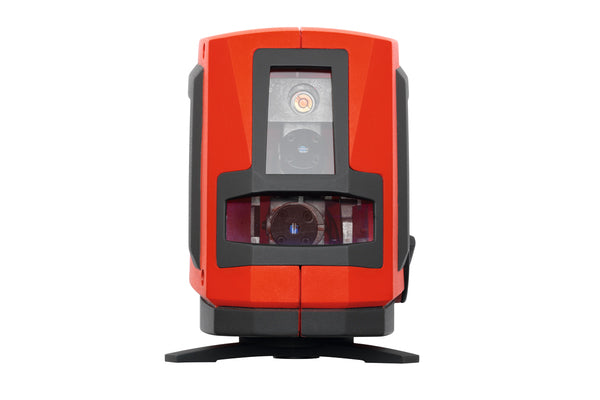

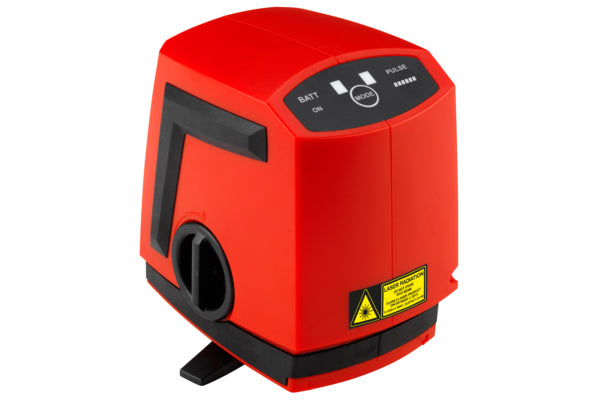

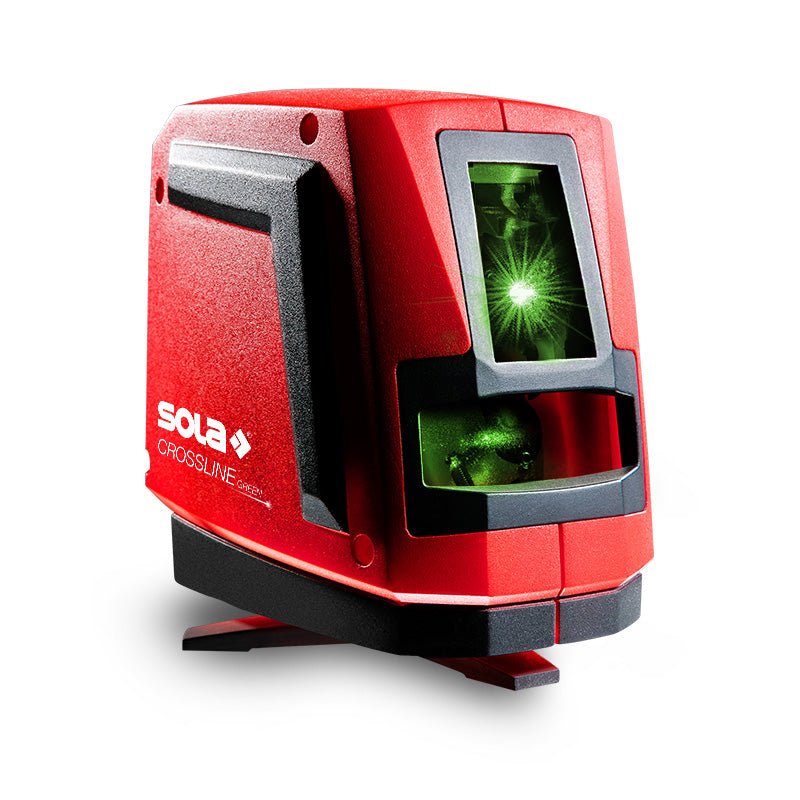

CROSSLINE GREEN Laser

  • REAL GREEN technology – Real. Improved. Visible.
  • High accuracy
  • Compact, lightweight, handy
  • Bright, very visible laser lines

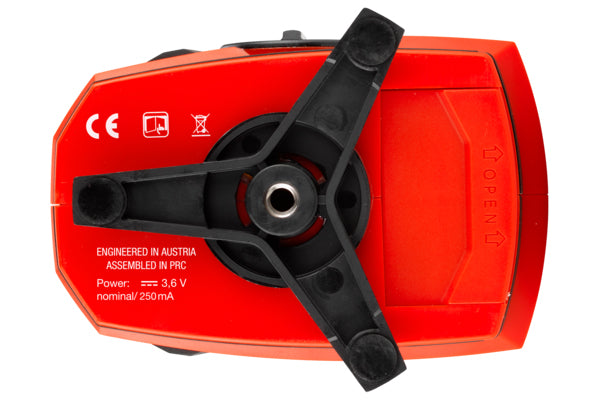

  • Rotatable base for easy and rapid alignment of the line position

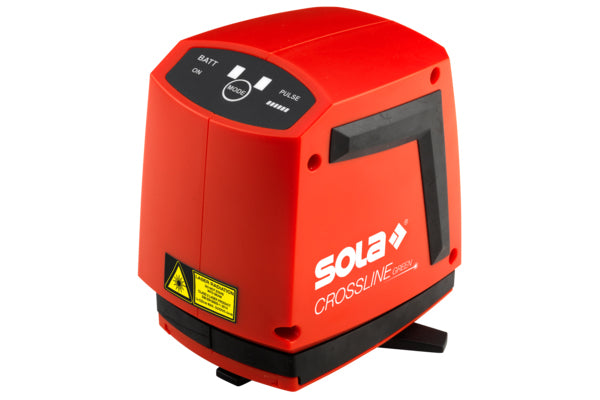

  • Switchable pulse function for easy use of optional receiver REC LGDO in difficult visibility conditions

Applications-

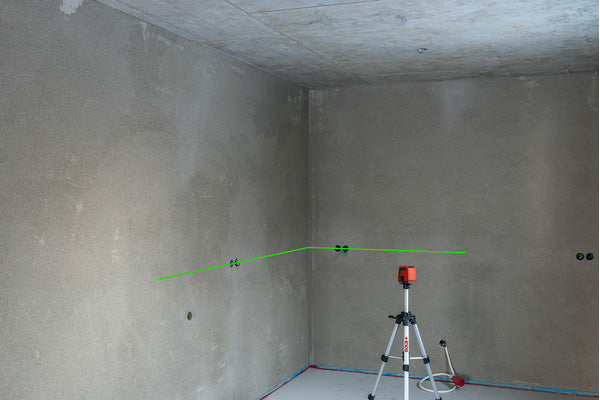

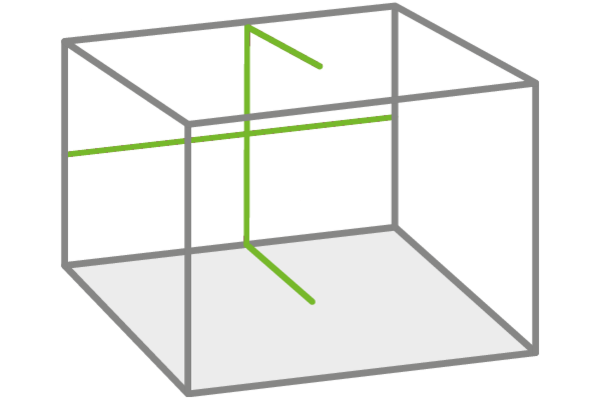

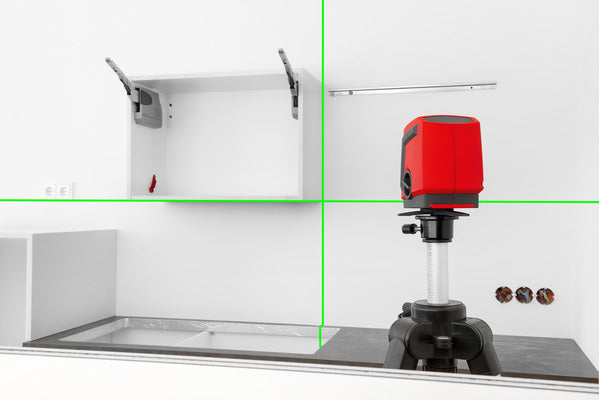

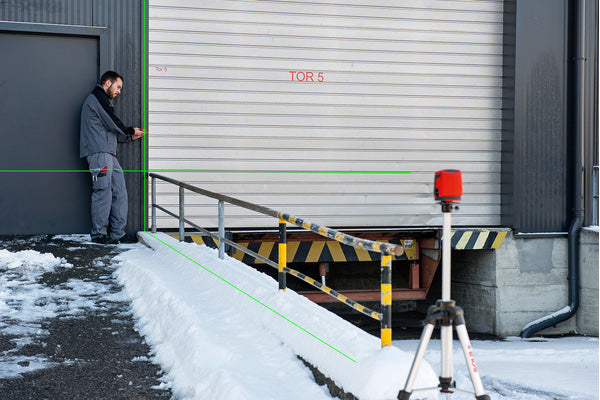

  • Horizontal levelling
  • Inclination manually
  • Vertical levelling

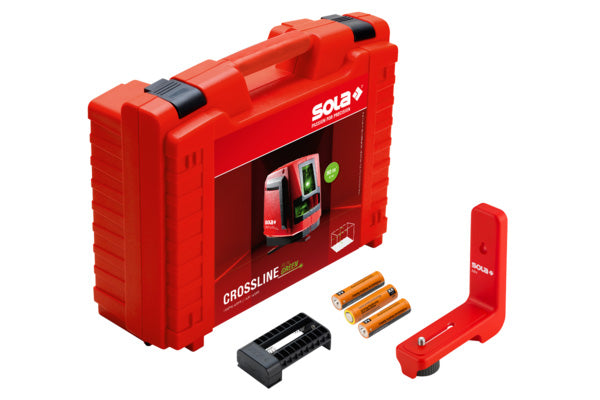

Included Accessories-

  • 3 x 1.5V (AA) batteries
  • Battery adaptor
  • Magnetic bracket
  • Case



    Technical Details-

    Item descriptionLine laser
    Dimension120 x 65 x 105 mm
    Levellingself-levelling
    Measuring tolerance±0.20 mm/m
    Self-levelling range±4°
    Application range without handheld receiver (radius)25 m*
    Application range with handheld receiver (radius)80 m*
    Operating temperature-10 °C to 50 °C
    Tripod adapter1/4″
    Protection classIP54
    Power supply3 x 1.5 V (AA) batteries

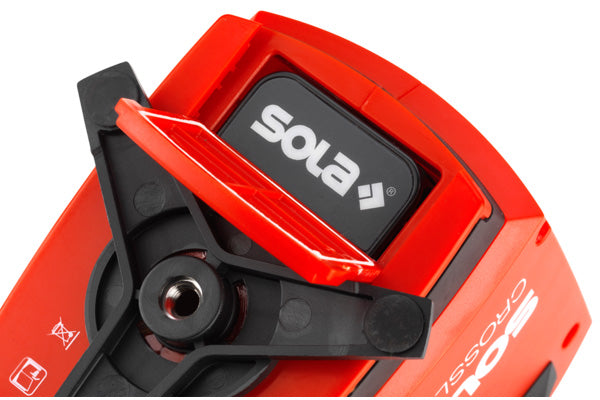

    SOLA Li-Ion battery (5200 mAh)
    Operating time (at 20 °C)7 h 3 x 1.5 V (AA) batteries
    17 h SOLA Li-Ion battery (5200 mAh)

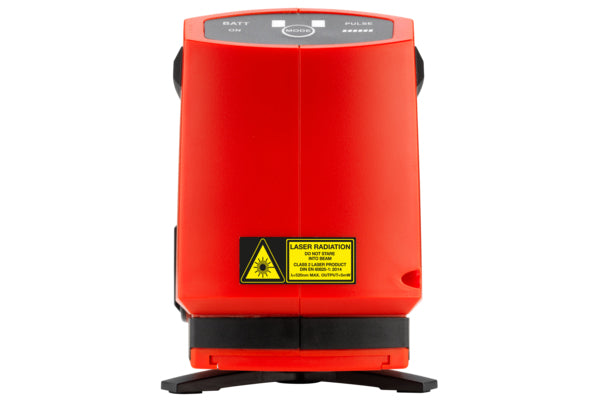

    Laser class2, DIN EN 60825-1 : 2014
    Output power< 5.0 mW
    Wavelength520 nm



    Part NumberDescription RRP
    CROSSLINEGCROSSLINE GREEN Laser. Includes: Carry case, Battery adaptor, batteries. $         686.40















    Brochure

    SOLA CROSSLINE Laser Brochure
